DESCRIPTION OF GOODS

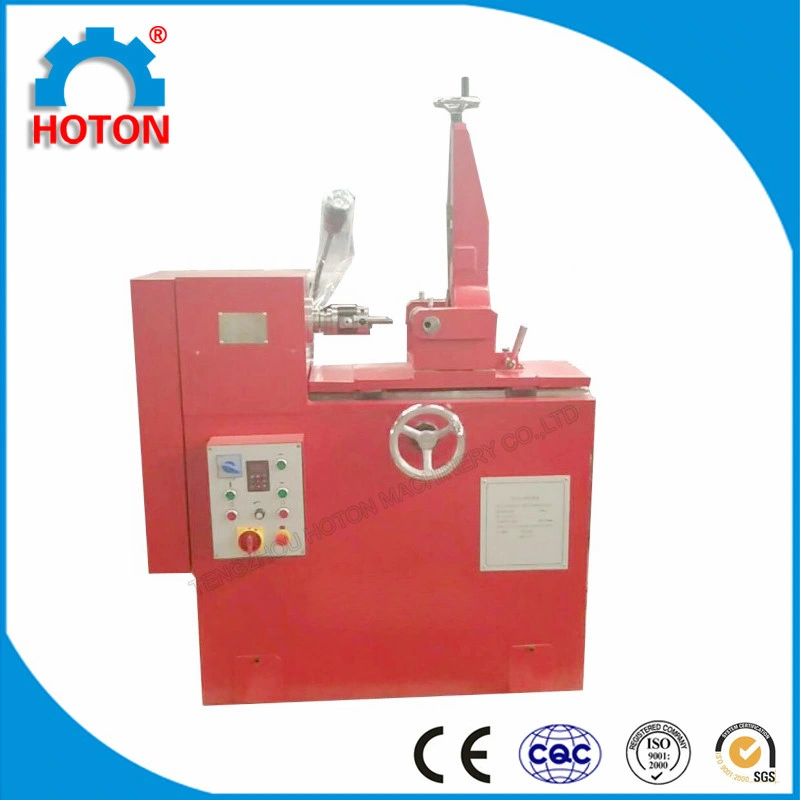

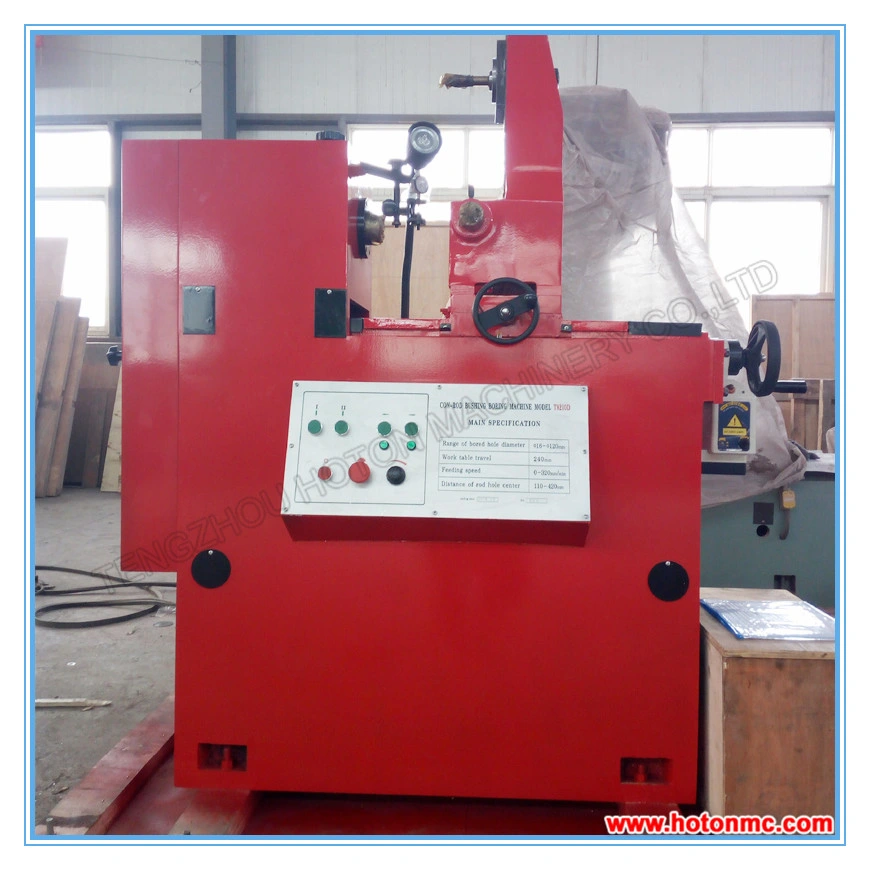

Con-Rod Bushing Boring Machine T8210D for engine rebuild Berco type
Con-rod boring machine has good performance,better structure,easy operation and high accuracy and can meet customer's demand.
The machine is mainly used in boring rod bushing hole (rod bushing and copper bush) of diesel and gasoline engine of automobiles and tractors.
In case of necessity,rod bushing seat hole can be fine-bored. The rough and fine boring processing for the holes on other parts can be also completed after
changing the corresponding clamps.
Besides,it has the accessories for centering sectifying tools,boring tools and micro-adjustment tools holder etc.
| Model | T8210D | T8216 |
| Diameter range of boring hole | 16-100mm | 15-150mm |
| Centre distance of link two hole | 100 -425 mm | 85 -600 mm |
| Longitudinal travel of worktable | 220 mm | 320 m |
| Spindle speed | 350, 530, 780, 1180 rpm | 140, 215, 355, 550, 785, 1200 rpm |
| Transverse adjusting amount of fixture | 80 mm | 80 mm |
| Feeding speed of worktable | 16 -250 mm /min | 16 -250 mm /min |
| Traveling speed of working | 1800 mm /min | 1800 mm /min |
| Diameter of boring bar (4 class) | 14, 16, 24, 40 mm | 14, 29, 38, 59 mm |
| Main motor power | 0.65/0.85 Kw | 0.85/1.1 Kw |
| Motor power of oil pump | 0.55 Kw | 0.55 Kw |
| Overall dimensions(L × W × H) | 1150 × 570 × 1710 mm | 1300 × 860 × 1760 mm |
| Packing dimensions(L × W × H) | 1700 × 950 × 1450 mm | 1850 × 1100 × 1700 mm |
| N.W/G.W | 700/ 900 kg | 900/ 1100 kg |
