3050m Wireline Core Drilling Rig Machine, Crawler Mounted Core Sample Drilling Rig
1.HFCR-8 Hydraulic Core Drilling Rig, an up-to-date multifunctional product is a thoroughly new-type hydraulic core drilling rig developed on the basis of the market demand and the advanced techniques in the world.
2.HFCR-8 is suitable to be used in plains, hills, high temperature as well as low temperature places. The main machine is integrated in structure, which consists of self-propelled chassis, power, mud pump and hoist. It is wire-line coring, and at the same time it has the unique top drive function.
3.HFCR-8 is excellent in performance, high in working efficiency, easy for operation and it can efficiently keep the operators from danger.
Technical Data:
| Power Unit | Power | 276 kW (370HP) at 2100 r/min |
| Drilling Capacity | NQ | 3050m |
| HQ | 2400 m | |
| PQ | 1700 m | |
| Drill Head | RPM of Spindle | Three Shifts/ Stepless ChangeThree 0-1250 RPM |
| Max. Torque of Spindle | 7300 N·m at 170 rpm | |
| 1300 N·m at 1250 rpm | ||
| Spindle Diameter | 121 mm(4.76 inch) | |
| Max. Lifting capacity of Spindle | 295 kn | |
| Max. Feeding Power | 152 kN | |
| Capacity of Main Hoist | Hoisting force (single wire) | 120kN |
| Steel Wire Diameter | 21.5 mm | |
| Steel Wire Length | 50 m | |
| Capacity of Wireline Hoist | Hoisting Force (single wire) | 15 kN(bare drum) |
| Steel Wire Diameter | 6.3 mm | |
| Steel Wire Length | 2800m | |
| Mast | Effective Hoisting Height | 9.6 m |
| Mast Adjusting Angle | 0°-90° | |
| Drilling Angle | 45º off horizontal to 90ºvertical down | |
| Feeding Stroke | 4700mm | |
| Slippage Stroke | 1100mm | |
| Foot Clamp | Clamping Scope | 55.5-117.5 mm through hole Ф154mm |
| Mud Pump | Type | Reciprocating Pump Triplex Plunger |
| Model | BW320 | |
| Stroke | 110mm(4.3 inch) | |
| Output volume | 320,230,165,118 L/min (84.5, 61, 44, 31 US Gallons/min) | |
| Discharge pressure | 4.0, 5.0, 6.0, 8.0 Mpa (580, 725, 870, 1160 psi) | |
| Others | Weight | 25000 Kg |
| Transport Dimensions (L × W ×H ) | 8300×2400×3500mm |

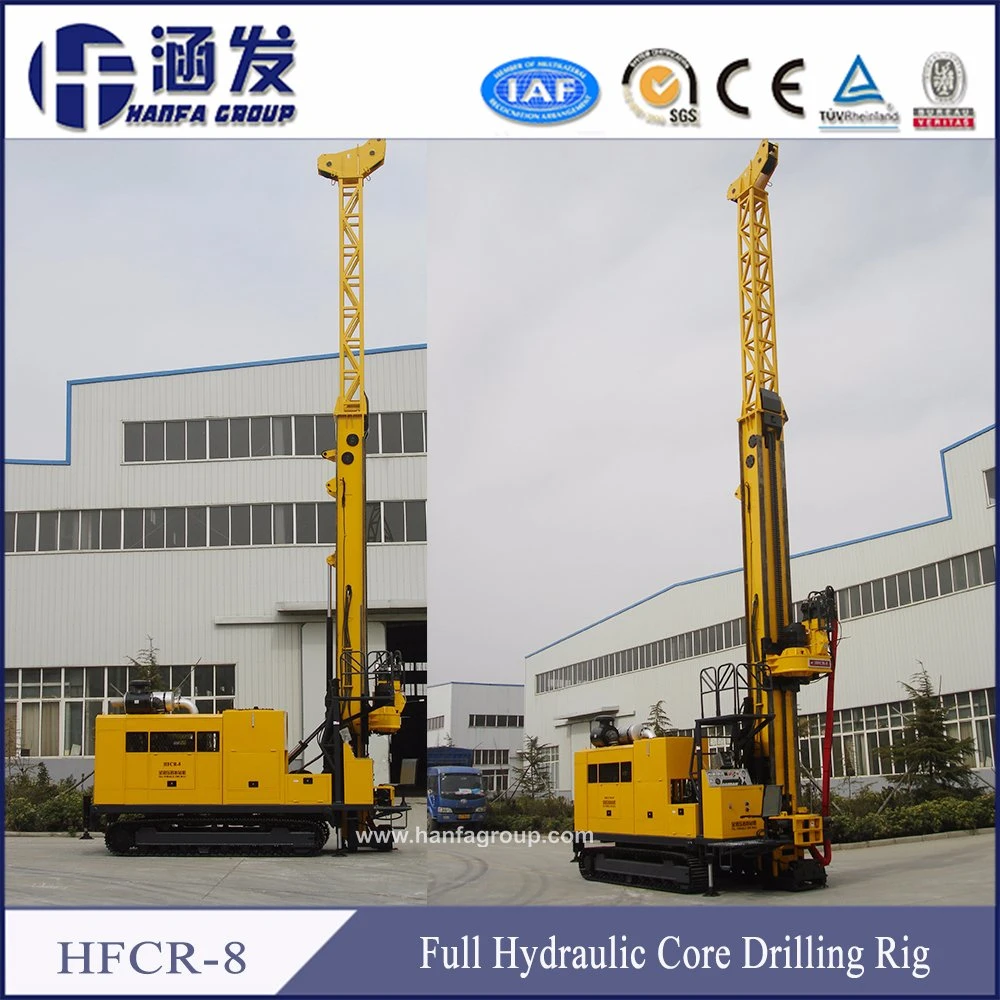

HFCR-8 core drill rig in workshop
HFCR-8 core drill rig in workshop
We have a large inventory
In Canada work site
